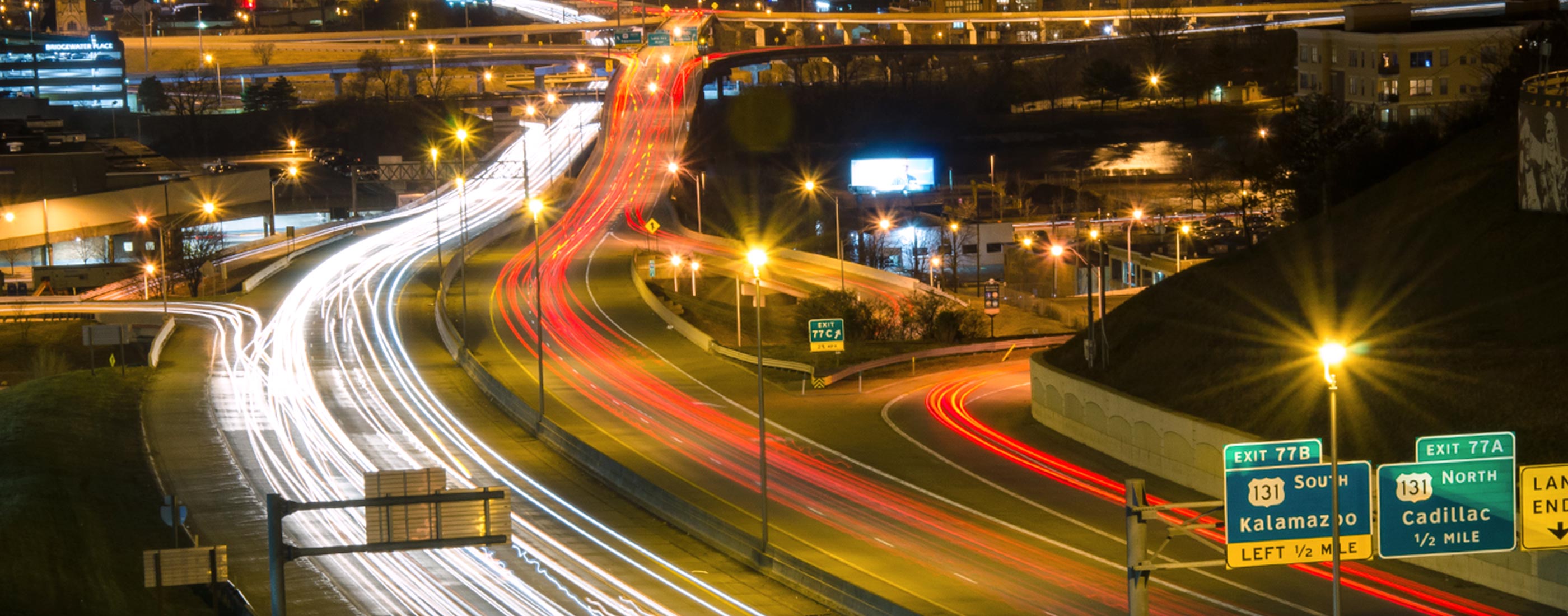

A busy highway at night

MDOT - Statewide Bridge Signs Inventory

Client

Michigan Department of Transportation

Location

Statewide, MI

Statewide GIS-Based Bridge Connection and Sign Inventory Streamlines Agency Functions

The Michigan Department of Transportation (MDOT) engaged OHM Advisors to develop a GIS-based inventory for all bridge connections and related signs throughout the entire state trunk line system. The GIS team worked over an extended period to physically visit and inventory each bridge site, collecting information specified by MDOT in an interactive data form created by the GIS group for use on tablets in the field. In the compiled inventory, each bridge’s data field includes its GPS location with attributes collected and logged, a digital photo of the bridge connection, and a separate digital photo of its corresponding signage.

The ongoing project will include control section and physical reference mile points for each bridge data field. Presented in an ArcMap v10.x layer, all of the inventory data will be used by MDOT in the development of future signing plans and bridge connection inspections. The full inventory collection is available via MDOT’s ArcGIS Online Data Portal at any time in the field for immediate use, significantly streamlining agency functions and providing substantial annual cost savings.

Project Highlights: GIS, GPS, bridge, DOT, transportation, data collection
